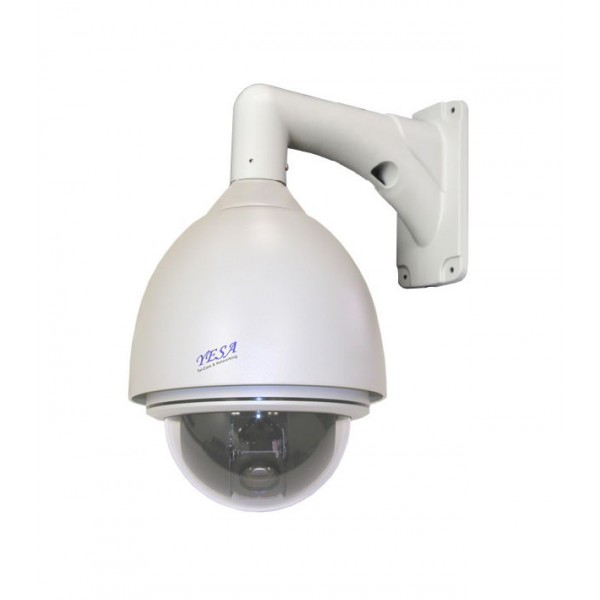

YCC1002H: Outdoor Speed Dome Camera

FEATURES • New version design • Die-cast aluminum construction • Low noise design • Osd function • 128 preset position • 6 cruising tracks, each cruising track • Has 16 preset positions • 6 privacy zone masking • 40 pattern tours

Price:

$250.00

Promotion:

For Large Quantity Orders, Feel Free to Contact us at Anytime.

Quantity:

Add to Favorite Items Print

Description

Additional information

SPECIFICATION	YCC1002H
IMAGE SENSOR	1/4"IT CCD
ACTIVE PIXELS	752 (H) X 582 (V)
SYNCHRONIZATION	INTERNAL / EXTRINSIC
VIDEO OUTPUT	VBS 1.0VP-P / 75OHM
WHITE BALANCE	AUTO / MANUAL
SCANNING FREQUENCY	15.625KHZ (H) 50HZ (V)
HORIZONTAL RESOLUTION	480TVL
S/N RATIO	50dB
ELECTRONIC SHUTTER	1/3 ~ 10000s
MIN. ILLUMINATION	0.7LUX
FOCAL LENGTH	F=4.1 ~ 73.8mm 18X
FOCAL & IRIS	AUTO / MANUAL
PAN SPEED	0°~ 300°/s
TILT SPEED	0°~ 120°/s
PANNING RANGE	360°CONTINUOUSLY
TILT RANGE	90°(300°AUTO OVERTURN)
PRESET	128 (MAX)
COMMUNICATION	MULTI-PROTOCOL, RS485
RELATIVE HUMIDITY	10-75% WITHOUT AGGLOMERATION
WORK TEMPERATURE	-45° ~ 50°C
POWER SUPPLY	AC 24V, 1.5A, EXTERNAL
POWER CONSUMPTION	20VA
WEIGHT	4KG
