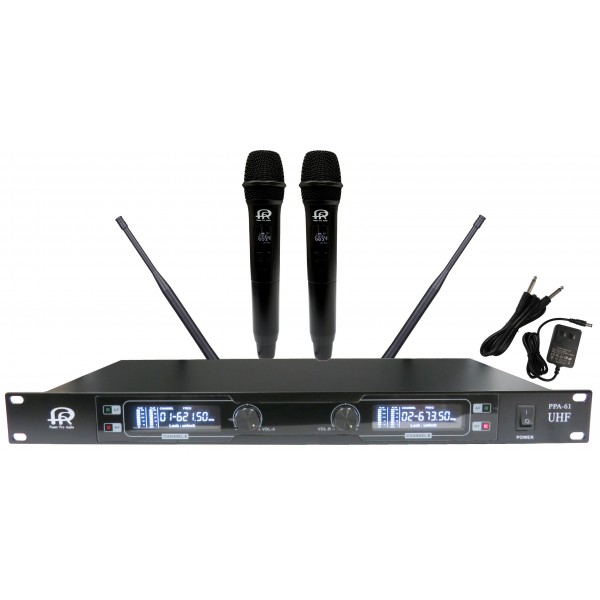

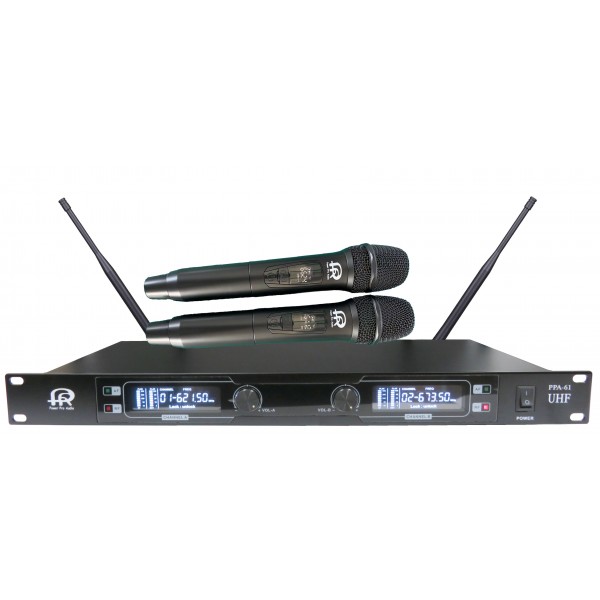

PPA61: 2-Channel 60M UHF Wireless Microphone Digital Display
2 Channels UHF Wireless Microphone Systems Digital Display |Operation Range: 60 Meters | 19" Rack-able | 2 Handheld styles for all occasion use
Price:
$375.00
Promotion:
For Large Quantity Orders, Feel Free to Contact us at Anytime.
Description
Additional information
FEATURES:
Built-in easy-to-read LCD information display on transmitter and Indicator light
Built-in 2 individual volume controls
Built-in two antennas for quality signal

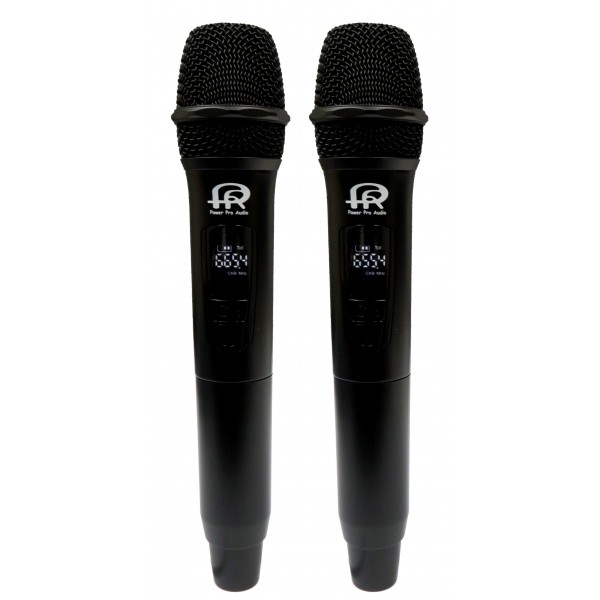

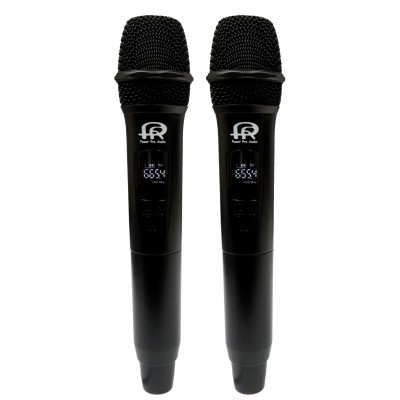

Comfort handheld Mic Handle design with good grip

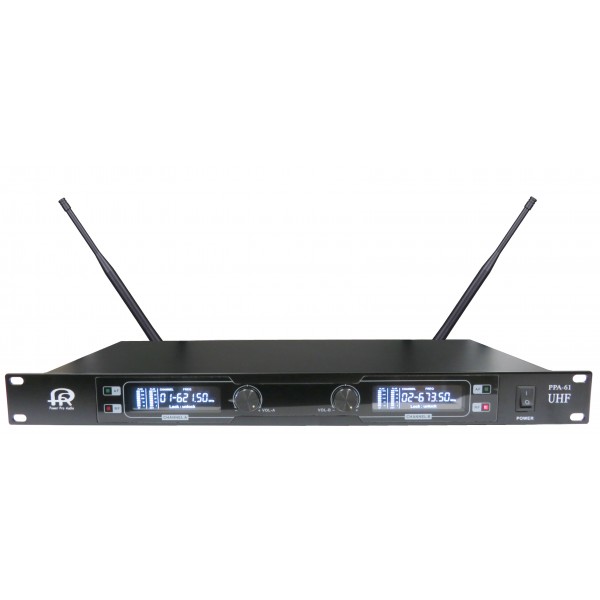

Built-in easy-to-read LCD information display on the receiver (CH | Frequency) and Indicator light
On/OFF bottom
Black finish
Specification:
UHF wireless microphone
2*50 adjustable channels
Frequency Range: 600-690MHz
Frequency Response: 40Hz-20KHz
Operating Range: 60M
Frequency Stability:<±30dB
Modulation mode: Pi/4 DQPSK
T. H.D<0.5% (at 1KHz)
S/N Ratio:>96dB

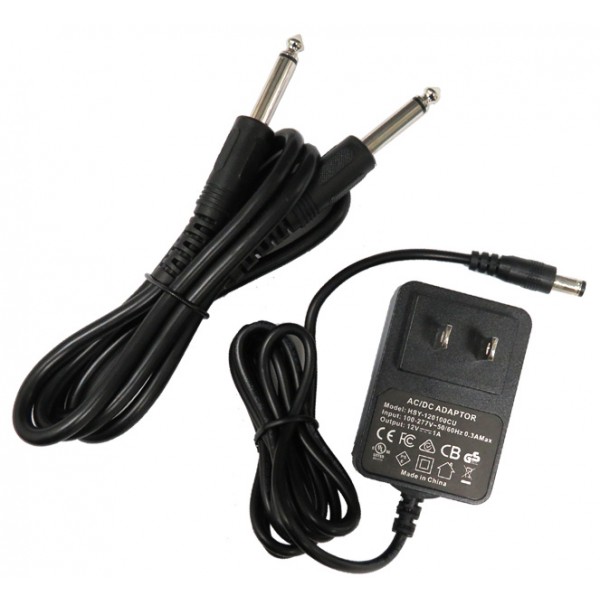

Receiver Power supply: DC12-15V/600mA
Power supply consumption: 10W
Receive Sensitivity: -99dBm
Transmitter power:10mW
Transmitter power supply: two 1.5V AA batteries
Characteristic of System:
*Automatic Frequency selection function makes the operation easier and more effective.
*The ALC circuit can help to avoid sound distortion.
*Thick bass, light median and clear alt can be delivered.
*The system can avoid noise interference and enlarge the dynamic range for
the audio-compressing-companding technology.
*The weakened feedback function can help to lower the feedback effectively.
*Excellent wafers and high-quality components make the sound quality better.
*The power capacity indicator of the microphone can indicate you to replace the
battery in time.

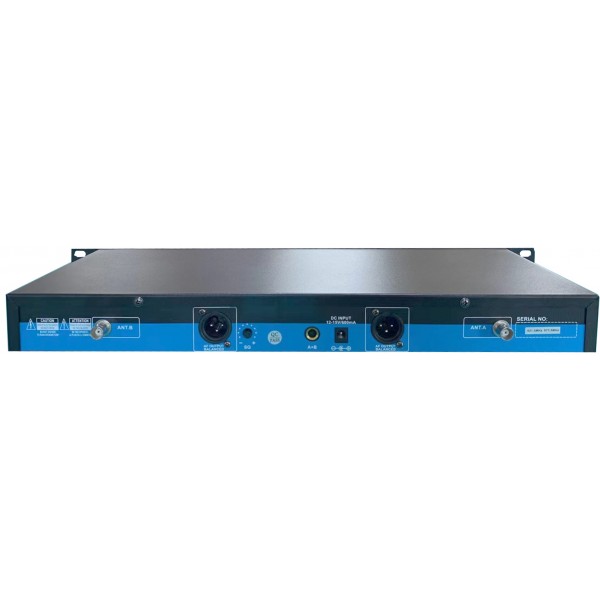

*Professional XLR balanced and unbalanced audio output designed, it is
suitable to connect different systems on all occasions
