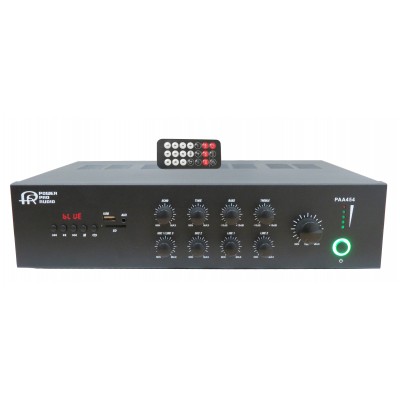

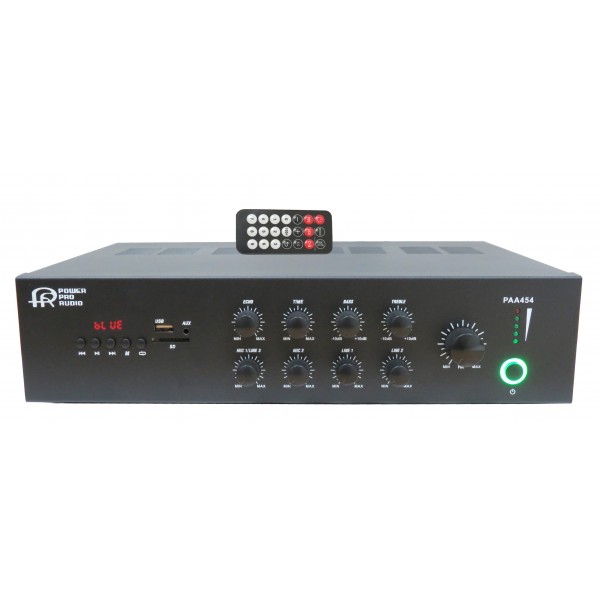

PPA454: 280W 70V/100V P.A. Amplifier USB, Bluetooth, FM
280W/ 70V/100V Public Address Amplifier With USB /Bluetooth/FM/SD & IR Remote Control
Price:
$235.00
Promotion:
For Large Quantity Orders, Feel Free to Contact us at Anytime.
Description
Additional information
FEATURE:
Output Power: 280W
Output Interface: 4 - 8 Ohms, 70V, 100V
MP3 Player: USB / SD / Bluetooth / AUX
Other Functions: FM Radio, Echo, Mute, Time, Remote control
Bluetooth: Yes - Freq. 2.4Ghz
Radio function: Yes
Type: USB Powered Mini Audio Amplifier
Input Interface: AUX*2,MIC*2,USB,SD
Input Sensitivity: AUX-400mv, MIC-10mv
Shell / Body Material: Metal

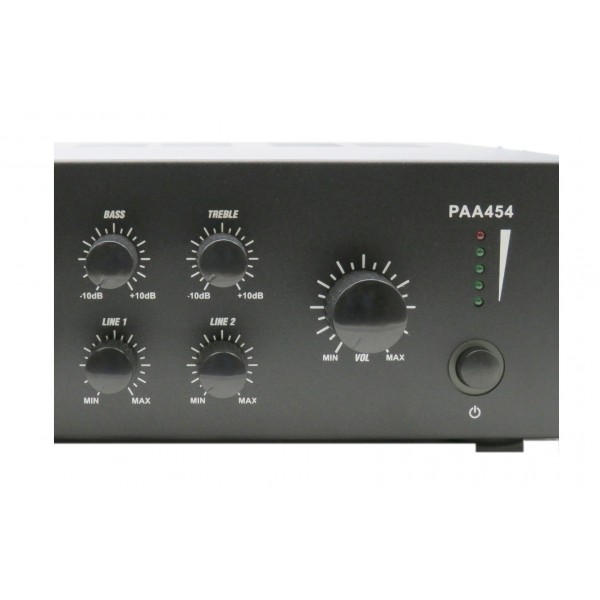

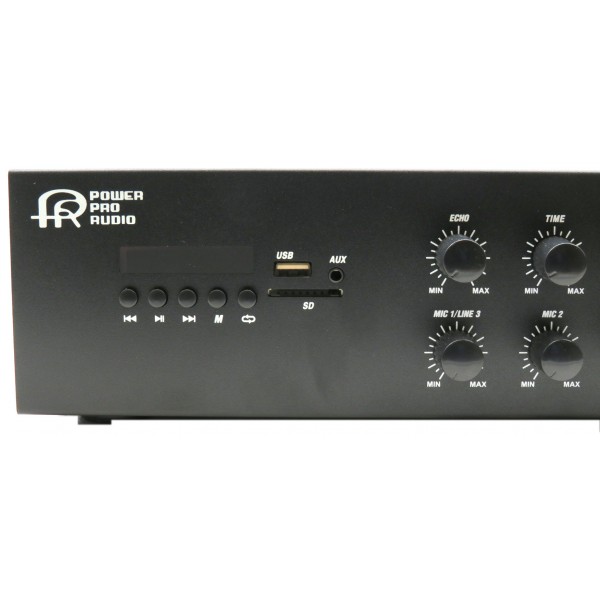

Front panel
1: MP3 module control keys
(Mode, Previous, Play / Pause Track, Next, Repeat mode setting)
2: USB Port, SD card slot, Bluetooth, 3.5mm AUX jacket
3: MIC 1/Line 3, MIC 2, volume control
4: Line 1, Line 2, volume control
5: Master volume control
6: Main Power switch
7: MP3 module screen & IR Remote receiver
8: MIC Echo & Time control
9: Bass & Treble Tone control
10: Output LED indicator
Rear Panel
1: AC fuses 1.6A & AC power input
2: MIC 1 mute jumper
3: 4, 8-ohms, 100V output
4: DC24V input
5: Line1&2 RCA input & output
6: MIC/Line Switch, Phantom power switch
7: MIC1/Line3, 6.35mm / XLR input
8: MIC2, 6.35mm input
9: FM Antenna
Technical data
Output Power(RMS): 280W
Frequency response: MIC:200Hz-18kHz Line: 100Hz-18kHz
THD at 1kHz: Less than 1%
Input sensitivity: Input 1, 2, Mic:5mV)
Input 3, Aux:245mV)
Output interface: 4ohm, 8ohm, 70V, 100V
Signal-to-noise Ratio: Mic: >70dB Line: >80dB
Power Consumption: AC110V /220V, (AC 50/60Hz), DC24V
Dimensions: WxHxD: 363x93x290mm
