ET1025E-65W: 65W PD Protocol Soldering Iron
The Soldering Iron is heating tool powered by PD power supply with an LED display
Price:
$59.99
Promotion:
For Large Quantity Orders, Feel Free to Contact us at Anytime.
Description
Additional information
The Soldering Iron is heating tool powered by PD power supply with an LED display. It heats up fast and is simple, quick and easy to operate with buttons.
• Its structure consists of PD socket, handle, control part and one-piece heater.
• Can be widely used in electronic research and production, especially suitable for home appliance repair and communication equipment maintenance.
Functions

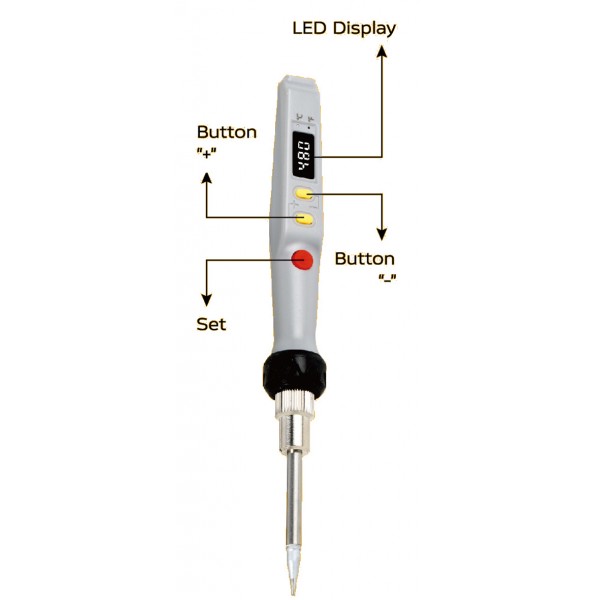

1. LED display
|
Screen display |
Function |
Details |
|
SLP |
Sleep function |
Sleep time available: 20,15,10,05,02,01,00. Numbers represent minutes, example: 05 means 5 minutes. 00 means sleep function off. |
|
-U- |
Input voltage |
Input voltage available: U05,U09,U12,U19,U20. Example: U20 means 20V. Note: when U05 is displayed (i.e., input voltage is 5V), the item heats up slower and cannot reach the max temperature. |
|
C-F |
Temperature unit |
Select the Temperature unit between ℃ and ℉ |
|
AdJ
|
Temperature calibration |
Setting: -9-0-9；Example: if the temperature is higher, then reduce the number. |
|
|
Sleep temperature |
Set the sleep temperature between 160℃ and 320℃ |
|
Specifications |
|
|
Power socket |
TYPE-C |
|
Protocol supported |
PD/QC |
|
Input |
5-20V |
|
Temperature |
160-480℃ |
|
Display |
LED |
|
Power |
60W max |
|

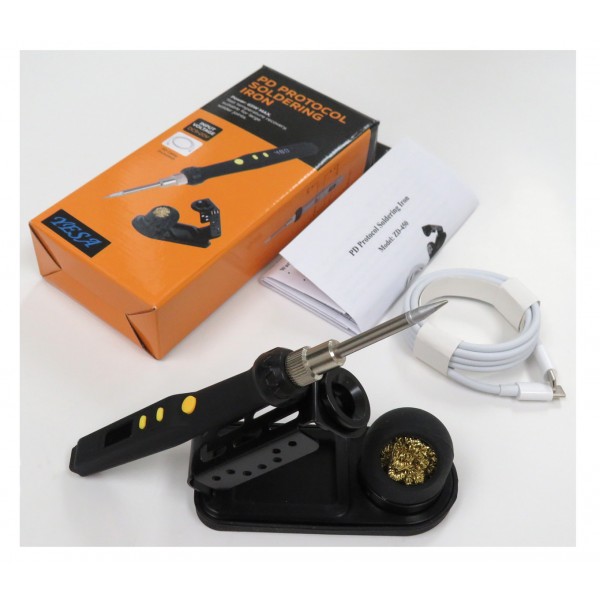

Parts list |
Soldering iron stand, cleaning ball, PD cable, one-piece tip&heater |
|
Certification |
CE\ EMC\ROHS\REACH |
|
|
|
