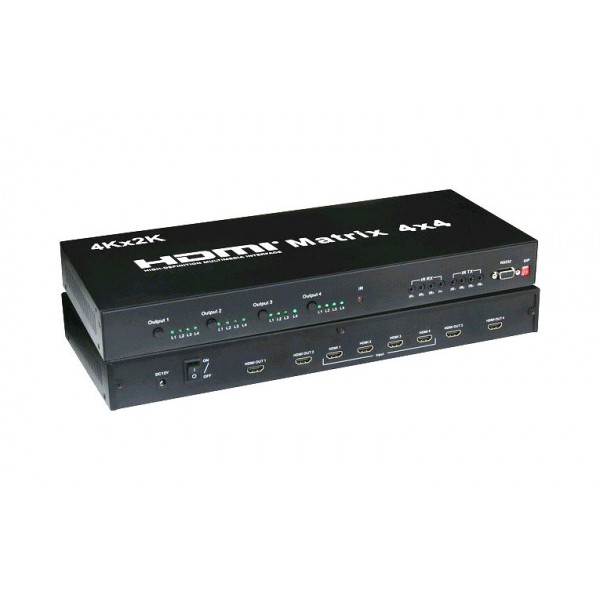

PRO2092-4x4: HDMI Matrix 4x4 with Full 3D, 4Kx2K, Bi-Directional

HDMI Matrix 4x4 with Full 3D, 4Kx2K, Bi-Directional IR Control and RS232. Allows any source (Blue-Ray player, HD DVD player, satellite receiver, game system, etc.) to be shown on the any of the four displays simultaneously

Price:

$495.00

Promotion:

For Large Quantity Orders, Feel Free to Contact us at Anytime.

Quantity:

Add to Favorite Items Print

Description

Additional information

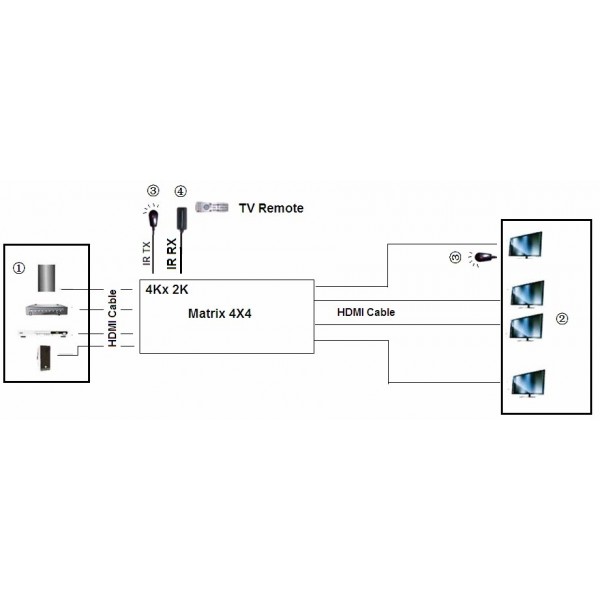

Allows any source (Blue-Ray player, HD DVD player, satellite receiver, game system, etc.) to be shown on the any of the four displays simultaneously.

Extra infrared receiver extension, IR emitter, RS232 are supplied for remote control.

Offers solutions for digital entertainment centers, HDTV retail and show sites, HDTV, conference room presentations, school and corporate training environments.

Features

Support high definition resolutions 4Kx2K
Support audio format DTS-HD/Dolby-trueHD/LPCM7.1/DTS/DOLBY-AC3/DSD
Input ports can be controlled by IR Remote Control
Via RS-232 control,the machine can upgrade the software, and the input and the output can be switched by computer
The four outputs could show the same or different source simultaneously no matter the source is HDCP or not

Specification
HDMI resolution   3840*2160/30Hz
Support audio color format                        36bit
Support audio format                                  DTS-HD/Dolby-trueHD/LPCM7.1/
DTS/Dolby-AC3/DSD
Max baud rate                                              3.4GBPS
Input and output TMDS signal 0.5~1.5Volts p-p
Input and output DDC signal 5Volts p-p (TTL)
Max working current 2.0A
Power adapter format Input:AC(50HZ, 60HZ)
100V-240V;output: DC12V/5A
Operating Temperature range -15 to +55℃
Working humidity range 5 to 90%RH (No Condensation)
Dimension (L x W x H) 410*170*45(mm)
Weight 1850g
