PRO2092-02: V2.0/4K/60HZ HDMI Splitter, 1In-2 Outs W/IR Extensio

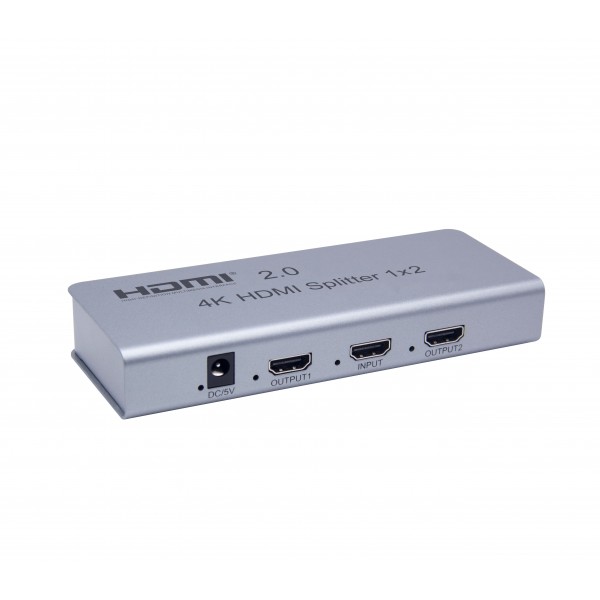

The 1x2 HDMI Splitters uses a single HDMI source, accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to 2 HDMI compatible monitors or projectors. it can be placed at the end of a long HDMI cable to regenerate the HDMI signal
Price:
$60.00
Promotion:
For Large Quantity Orders, Feel Free to Contact us at Anytime.
Description
Additional information
The resolution of this hdmi splitter can be up to 3840X2160/60Hz.This product can support EDID management function,
comes with eight kinds of EDID mode,the users can choose according to their own needs. In addition,
it is with built-in IR extension function, it can work with our hdmi 2.0 repeater which has IR-RX to receive the IR command
to control the source.
Features
* Support HDMI V2.0 ,HDCP2.2?
* Support HDR?
* Support 3D video format?
* Support CEC (only output1)?
* Support high resolution up to 3840X2160/60HZ?
* Support the max baud rate of 6G and TMDS clock can be up to 600 MHz?
* Support 8/10/12 bit deep color?
* Support AWG26 HDMI standard cable:
1) when the resolution is 1080p and below, input up to 8 meters,output to 8 meters.
2) when the resolution is 4K, input up to 8 meters, output up to 8 meters.
* Support single HDMI source?accessing to multiple HDMI sinks, the source can be DVD
player, A/V receiver, set top box and etc?
* Built-in IR extension function.( it can work with our hdmi 2.0 repeater which has IR-RX to
receive the IR command to remote control the source)?
* Support serial port online upgrade?
* Support EDID management?
* 5V/1.5A power adapter?

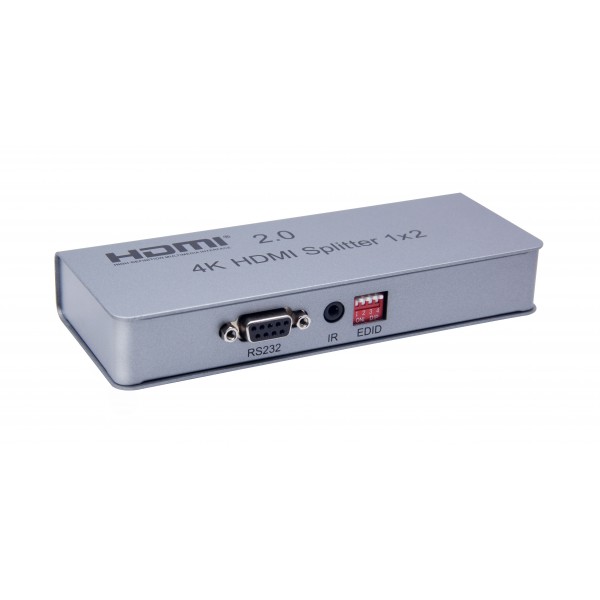

IR Extension description
There is an IR TX Extension port, it can work with an optional HDMI 2.0 repeater which
works as IR-RX and IR extended via HDMI cable
